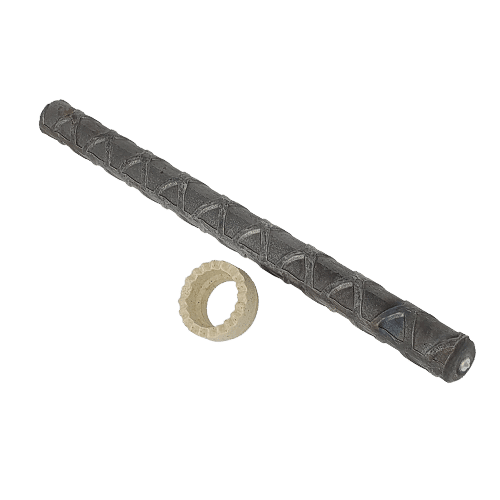

A706 STUD WELDABLE REBAR- SWR

SWR (Stud Weldable Rebar) A706 anchors are fully stud weldable with standard stud welding equipment and accessories.

SWR A706 Meets the Following Requirements:

  • ASTM A706 ‐Standard Specification for Deformed and Plain Low‐Alloy
  • Steel Bars for Concrete Reinforcement‐Grade 60 deformed concrete reinforcement.
  • ACI 318‐ Earthquake‐Resistant Structures
  • Seismic Design Requirements for Ducle Steel Reinforcing Elements
  • Stud‐weldable in accordance with the requirements AWS D1.1/ D1.1 M
  • Structural Welding Code‐Steel Clause 7 Stud Welding and/or AWS D1.4/
    D1.4 M

Benefits of Stud Welding:

  • Full penetration welds
  • Faster production than traditional welds
  • Bridge and building construction
  • Automatic machine controlled welds

SWR A706 Applications:

  • Precast concrete grade crossings
  • Concrete connection where ductility is key
  • Thread, bent and straight bar stud uses
  • Seismic management
  • Bridge and building construction

A706 SWR SPEC SHEET

SKU: SWR Category:

Description

Available Stock Sizes – Other sizes available, request a quote.

SWP PART# SIZEFERRULE PART#CHUCK PART#FOOT PART#GRIP PART#
SWR 12 12181/2 X 12-1/8FER10-P-flat welding
FER10-PV-vertical welding
CNSWR-050B-2CGC-062
SWR 12 18181/2 X 18-1/8FER10-P-flat welding
FER10-PV-vertical welding
CNSWR-050B-2CGC-062
SWR 12 24181/2 X 24-1/8FER10-P-flat welding
FER10-PV-vertical welding
CNSWR-050B-2CGC-062
SWR 12 30181/2 X 30-1/8FER10-P-flat welding
FER10-PV-vertical welding
CNSWR-050B-2CGC-062
SWR 12 36181/2 X 36-1/8FER10-P-flat welding
FER10-PV-vertical welding
CNSWR-050B-2CGC-062
SWR 12 48181/2 X 48-1/8FER10-P-flat welding
FER10-PV-vertical welding
CNSWR-050B-2CGC-062
SWR 58 183165/8 X 18-3/16FER12-P-flat welding
FER12-PV-vertical welding
CNSWR-062B-2CGC-075
SWR 58 243165/8 X 24-3/16FER12-P-flat welding
FER12-PV-vertical welding
CNSWR-062B-2CGC-075
SWR 58 303165/8 X 30-3/16FER12-P-flat welding
FER12-PV-vertical welding
CNSWR-062B-2CGC-075
SWR 58 363165/8 X 36-3/16FER12-P-flat welding
FER12-PV-vertical welding
CNSWR-062B-2CGC-075
SWR 58 483165/8 X 48-3/16FER12-P-flat welding
FER12-PV-vertical welding
CNSWR-062B-2CGC-075
SWR 34 183163/4 X 18-3/16FER14-P-flat welding
FER14-PV-vertical welding
CNSWR-075B-3CGC-087
SWR 34 243163/4 X 24-3/16FER14-P-flat welding
FER14-PV-vertical welding
CNSWR-075B-3CGC-087
SWR 34 303163/4 X 30-3/16FER14-P-flat welding
FER14-PV-vertical welding
CNSWR-075B-3CGC-087
SWR 34 363163/4 X 36-3/16FER14-P-flat welding
FER14-PV-vertical welding
CNSWR-075B-3CGC-087
SWR 34 483163/4 X 48-3/16FER14-P-flat welding
FER14-PV-vertical welding
CNSWR-075B-3CGC-087
