Studs for the Sign Industry
StudPro 2500xi CD Welder (1/4″ Max Stud Dia.)From $2,920.00 Select options

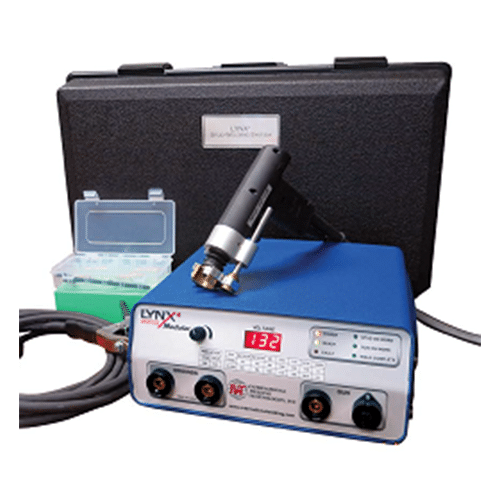

LYNX4 Modular CD Stud Welder (5/16″ Max Stud Dia.)From $3,300.00 Select options
Flanged Capacitor Discharge Studs (Aluminum)From $22.00 Select options
Non-Flanged Capacitor Discharge Studs (Aluminum)From $35.20 Select options
Aluminum CD Stud Kit (1/4″ Max) **200 Studs**$73.70 Add to cart
Tapped Pad Non-Flanged CD StudsFrom $0.37 Select options
Tapped Pad Flanged CD StudsFrom $0.75 Select options
Aluminum All Thread RodFrom $15.80 Select options
Centering Tube$173.00 View products
Wire Tie Down StudFrom $12.00 Select options
Hex NutFrom $2.00 Select options
Flat WasherFrom $0.90 Select options
Lock WasherFrom $1.60 Select options

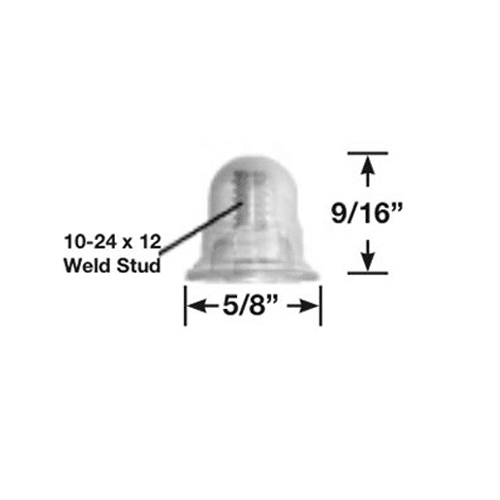

Dome Cap NutsFrom $24.90 Select options
Torque Testing Device$820.00 Add to cart
A-32 Welding Arm$2,640.00 Add to cart
S-36 Welding Arm$2,640.00 Add to cart
CD Ground StudsFrom $10.00 Select options
Reverse Channel Letter Supports
Flanged Tap Pad Studs – We boast having the strongest Tap Pads in the USA. Our aluminum flanged Tap Pads (AKA Internal threaded studs) are chemically cleaned to improve weld quality, save time and save money when manufacturing Reverse Channel Letters. Shoot a Tap Pad/Internally Threaded CD stud inside your channel letters to accept all-thread wall anchors. No Reverse side marking! If you are shipping your Reverse Channel Letters, ship them without the all-threads installed so they take up less room when packaging to save shipping costs.
Neon Tube Supports – Running Neon in your Reverse Channel Letters? Stud Weld a 10-32 x 1/2 CD Stud into your Reverse Channel Letters, screw on a Neon Tube Support available from SWP, and secure with a reusable Pal Nut/Push-on Nut.
Stand Off Applications
Tap Pad Studs – We boast having the strongest Tap Pads in the USA. Our aluminum flanged Tap Pads (AKA Internal Threaded Studs) are chemically cleaned to improve weld quality. Tap Pad Studs/Internally Threaded CD Studs are a convenient way to mount your stand-off letters either directly to a wall using all-threads or to a sign face by using headed screws through your sign face screwed into the tap pads.
Need to light your stand-off letters from the back? – Weld a 10-32 x 1/2 CD stud onto the back of your stand-off letter, screw on a neon tube support, and secure with a reusable Pal Nut/Push-On Nut.
Aluminum Sign Frame
Aluminum Frame and Structural Fabrication made simple utilizing the SWP CD Stud Welder. Our CD Welders are manufactured not only to shoot Mild and Stainless Steel, but also to shoot Aluminum weld studs without failures. With an on-the-fly adjustable spring pressure coming standard on the SWP gun, just dial the gun to the appropriate setting and start shooting. Our system includes a double ground set-up that will further ensure a great weld every time!
Use Pal-Nuts to save time and cost! Pal-Nuts are a push-on nut that is reusable and can be used with a threaded or non-threaded stud. Why fiddle with a washer and nut when you can just use a Pal-Nut that has the washer built in? Just push the Pal-Nut on with a 3/8″ wrench or socket and move on!
