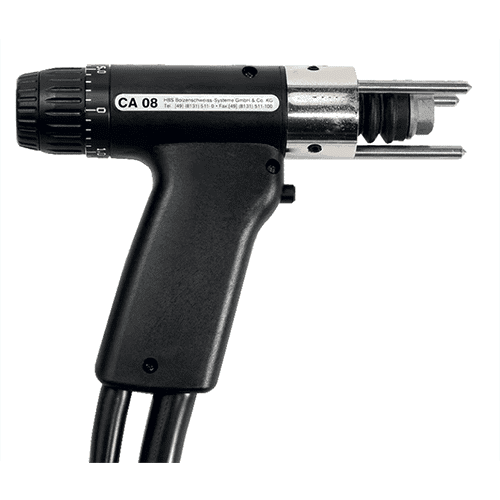

CA 08 CD Stud Gun (5/16″ Max Dia.)


Stud welding gun for CD stud welding according to current standards. Durable and easy to use. Especially suitable for thin sheets (at least 0.5 mm). 90 day warranty.

Gun will ship with the AMPHENOL 7 PIN MALE CONTROL CONNECTOR   and  2/0 Weld Cable DIN ZCONECTORS

Other connectors available upon request.

CA 08 Spec Sheet



The CA 08 CD Stud Gun is an ultra-versatile and ultra-lightweight capacitive discharge stud gun option! See features below!

Premium Features:

  • Ergonomic design makes welding a breeze!
  • Comes equipped with an advanced guiding system to increase accuracy!
  • Extremely portable and lightweight (only 1lb!)
  • Utilizes standard Euro Collets (Find Euro Collets here!)

If you would like to see the full Spec Sheet for the CA 08 CD Stud Gun, click here!

Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. In the process of CD welding, stud gun operators end-weld small-diameter fasteners to thin gauge parent metal. The CD process operates on the principle of capacitor stored energy, which is instantaneously discharged by the equipment system through a special weld “timing” tip. Because the entire weld cycle occurs in several milliseconds, welds can be made to thin sheets without pronounced distortion, burn-through or discoloration. Additionally, one unique characteristic of CD welding is that it permits stud welding of dissimilar metals.

Not What You’re Looking For?

If you’d like to view our full selection of Arc and Capacitive Discharge stud welders, click here! And find our full selection of CD stud guns here!

Have Questions?

For more information on this product, email us or call our office at 800-252-1919 and we will get back to you shortly!
