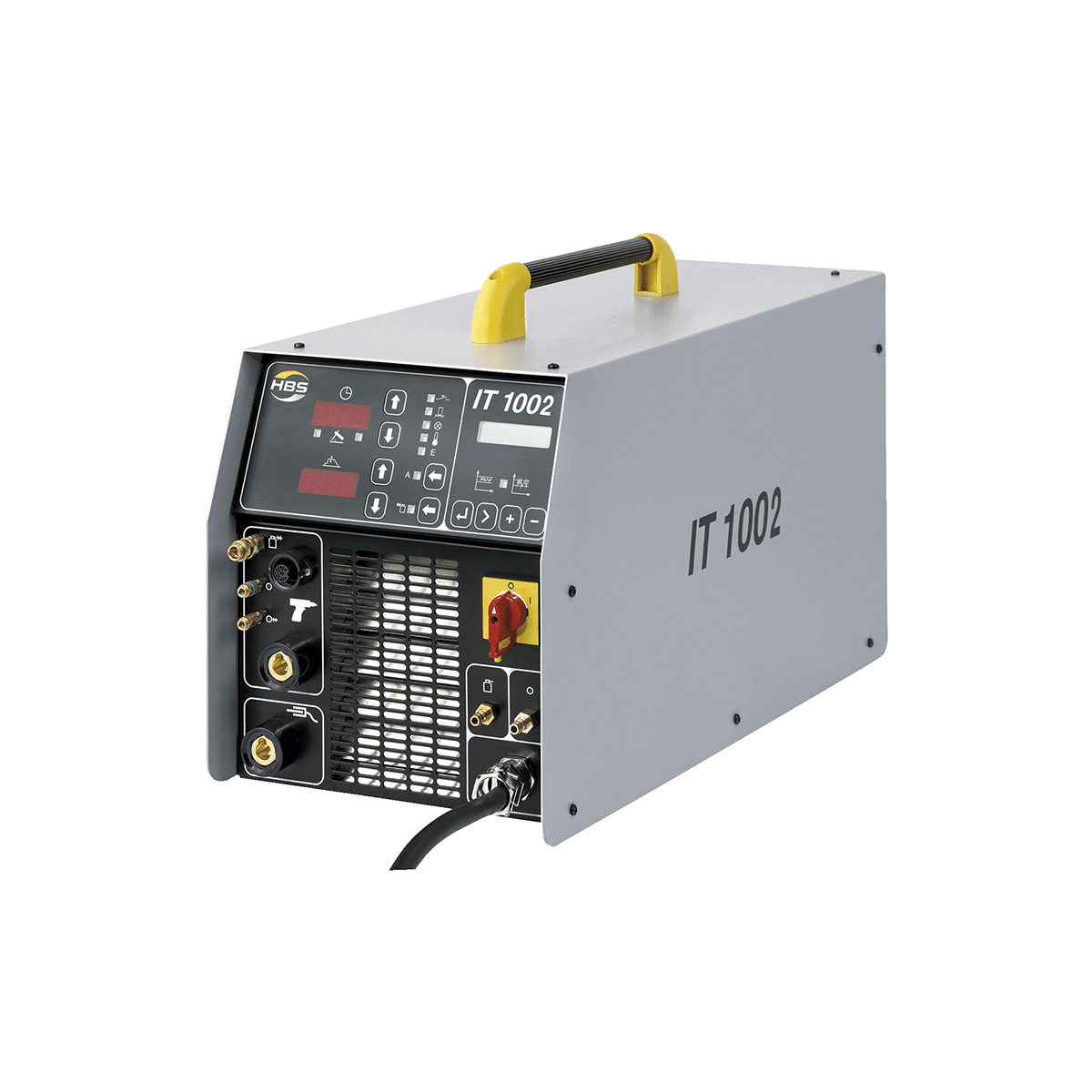

HBS IT 1002 ARC Stud Welder (5/8″ Max Dia.)


The IT 1002 Stud Welding System is especially suitable for thicker sheets of about 2 mm or higher. The unit features micro controller, function monitoring, display of error codes, lift test, library function and process monitoring. See more features in the description below!

it 1002 Spec Sheet

HBS equipment is CE certified

  • Weld Range: #4 TO 1/2" DIA. 14 GA TO 3/8" (M3 TO MR12, DIA. 2 TO 10 MM)
  • Welding Material: Mild Steel, Stainless Steel
  • Welding Rate: 7 to 17 studs/minute
  • Welding Time: 5 to 1000 MSEC
SKU: EQ IT1002 Category:


The HBS IT 1002 Capacitive Discharge Stud Welder is a portable, highly efficient, and compact ARC stud welding system perfect for any shop or job site! See features below:

  • RangeWelding range of #4 to 5/8″!
  • Display: Digital display notifies user of error codes for fast troubleshooting!
  • Thick Sheets: This ARC Stud Welder is suited perfectly for metal sheets of 2mm or thicker!
  • Premium Safety Features: Thermal monitoring of transformer allows for automatic shutdown in the case of overheating!
  • Technology: Microcontroller technology allows users to control precisely the amount of desired power output!
  • Long-lasting: Sturdy design and Cooling-air tunnel keep the interior electronics safe from dust and debris!
  • Versatile: The IT 1002 Stud Welder can weld Stainless and Mild Steel, as well as Aluminum!
  • Heavy-Duty: Weighing just over 68lbs, this ARC welder packs extreme power, extreme efficiency, and high capacity in its sturdy chassis!
  • All HBS equipment offered through Stud Welding Products is CE Certified!

See the full specifications for the HBS IT 1002 here: IT 1002 Spec Sheet.

Have Questions?

For more information on this product, email Info@studweldprod.com or call our nearest office at 800-252-1919.
