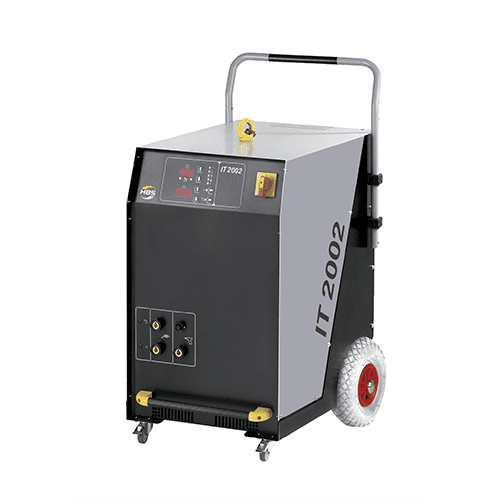

HBS IT 2002 ARC Inverter Stud Welding Unit (1″ Max Dia.)


The IT 2002 Stud Welding Unit is especially suitable for thicker sheets of about 2mm or higher, also suitable for welding of concrete anchors/shear connectors for job site applications as well as throug deck welding. The unit features micro controller,function monitoring, left test, and library function.

IT 2002 Spec Sheet

HBS equipment is CE certified

  • Welding Range: #4 TO 1 " DIA. 14 GA TO 1 " (M3 TO MR24, DIA. 2 TO 25 MM)
  • Welding Rate: 7/8"= 7 STUDS/MIN.
  • Welding Time: 5 TO 1500 MSEC (STEPLESS)
  • Weight: 209.4 LBS
SKU: EQ IT2002 Category:


The HBS IT 2002  Stud Welding Unit boasts power and efficiency in a high capacity, mobile stud welding system. See features below:

  • Range: Welding range of #4 to 1″!
  • Display: Digital display notifies user of error codes for fast troubleshooting!
  • Thick Sheets: This CD Stud Welder is suited perfectly for metal sheets of 2mm or thicker!
  • Premium Safety Features: Thermal monitoring of transformer allows for automatic shutdown in the case of overheating!
  • Technology: Microcontroller technology allows users to control precisely the amount of desired power output!
  • Long-lasting: Sturdy design and Cooling-air tunnel keep the interior electronics safe from dust and debris!
  • Versatile: The IT 2002 Stud Welder can weld Stainless and Mild Steel, as well as Aluminum!
  • Heavy-Duty: Weighing 209lbs, this welder packs extreme power, extreme efficiency, and high capacity in its sturdy chassis!
  • Mobile: Wheels and handle make this stud welding system easily portable despite its size and weight!
  • Additional Features: Comes equipped with Inverter technology and Stepless voltage regulation!
  • All HBS equipment offered through Stud Welding Products is CE Certified!

See the full specifications for the HBS IT 2002 Stud Welding Unit here: IT 2002 Spec Sheet.
