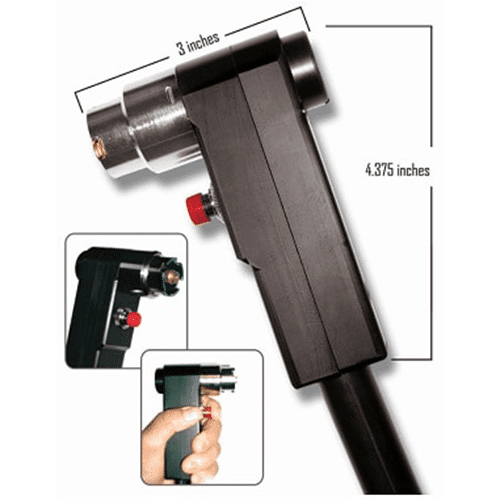

IWT-M1 Compact Stud Gun (1/4″ Max)

$1,000.00

The ITW-M1 gun is designed to fit in small and narrow locations where standard welding guns can not. It is the only gun of its size to keep stud perpendicular to the work surface. 90 day warranty.

Gun will ship with the Hubbell Control Connector (107-0030) and 1/0 Weld Cable Camlock107-0010 ,  Other connectors available upon request.

M1 Gun Spec Sheet

Category:

Description

The IWT-M1 Compact Stud Gun is a unique, ultra-compact stud gun that allows operators to weld in narrow locations! No other stud gun is as portable without sacrificing quality!

Premium Features:

  • Extremely lightweight! This gun is super compact and is only 9 ounces!
  • This gun’s design allows you to weld in tight places and keep welds upright!
  • 20 foot welding cable is extremely flexible! This allows you to weld in tough to reach places!
  • Utilizes standard Euro Collets (Find Euro Collets here!)

If you would like to see the full Spec Sheet for the IWT-M1 Compact Stud Gun, click here!

Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. In the process of CD welding, stud gun operators end-weld small-diameter fasteners to thin gauge parent metal. The CD process operates on the principle of capacitor stored energy, which is instantaneously discharged by the equipment system through a special weld “timing” tip. Because the entire weld cycle occurs in several milliseconds, operators can weld fasteners to thin sheets without pronounced distortion, burn-through or discoloration. Additionally, one unique characteristic of CD welding is that it permits stud welding of dissimilar metals.

Not What You’re Looking For?

If you’d like to view our full selection of Arc and Capacitive Discharge stud welders, click here! And find our full selection of CD stud guns here!

Have Questions?

For more information on this product, email us Info@studweldprod.com or call our office at 800-252-1919 and we will get back to you shortly!
