Description

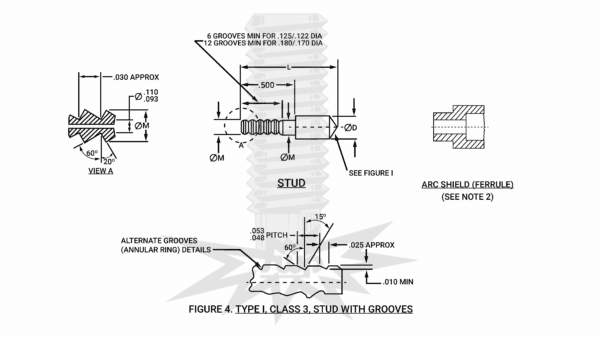

MIL-S-24149/1 TYPE 1, CLASS 3, STUD WITH GROOVES
This specification is approved for use within the Naval Sea Systems command, Department of the Navy, and is available for use by all Departments and Agencies of the Department of Defense.
| M24149/1 DASH NO | STUD "L" ±.031 | STUD ØD ± .005 | STUD ØM |
|---|---|---|---|
| 201 | .750 | ||
| 202 | .875 | ||
| 203 | 1.000 | ||
| 204 | 1.125 | ||
| 205 | 1.250 | ||
| 206 | 1.375 | ||
| 207 | 1.500 | ||
| 208 | 1.625 | .125 | .125 |
| 209 | 1.750 | .122 | |
| 210 | 1.875 | ||
| 211 | 2.000 | ||
| 212 | 2.250 | ||
| 213 | 2.500 | ||
| 214 | 2.750 | ||
| 215 | 3.000 | ||
| 216 | .750 | ||
| 217 | .875 | ||
| 218 | 1.000 | ||
| 219 | 1.125 | ||
| 220 | 1.250 | ||
| 221 | 1.375 | ||
| 222 | 1.500 | ||
| 223 | 1.625 | .185 | .180 |
| 224 | 1.750 | .170 | |
| 225 | 1.875 | ||
| 226 | 2.000 | ||
| 227 | 2.250 | ||
| 228 | 2.500 | ||
| 229 | 2.750 | ||
| 230 | 3.00 |

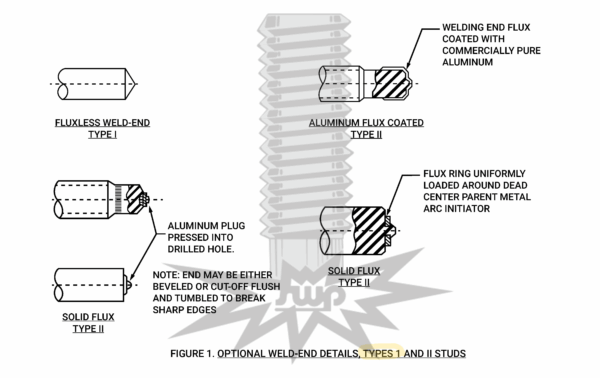

NOTES:
1. Length “L” shown is the overall length of the stud before welding. The stud will be approximately 1/8 to 3/16 inch shorter after welding.
2. Part number includes the stud and the arc shield (ferrule).
3. Dimensions are in inches. Unless otherwise specified, tolerances: decimals ± .015, angles ± 2°.
