Description

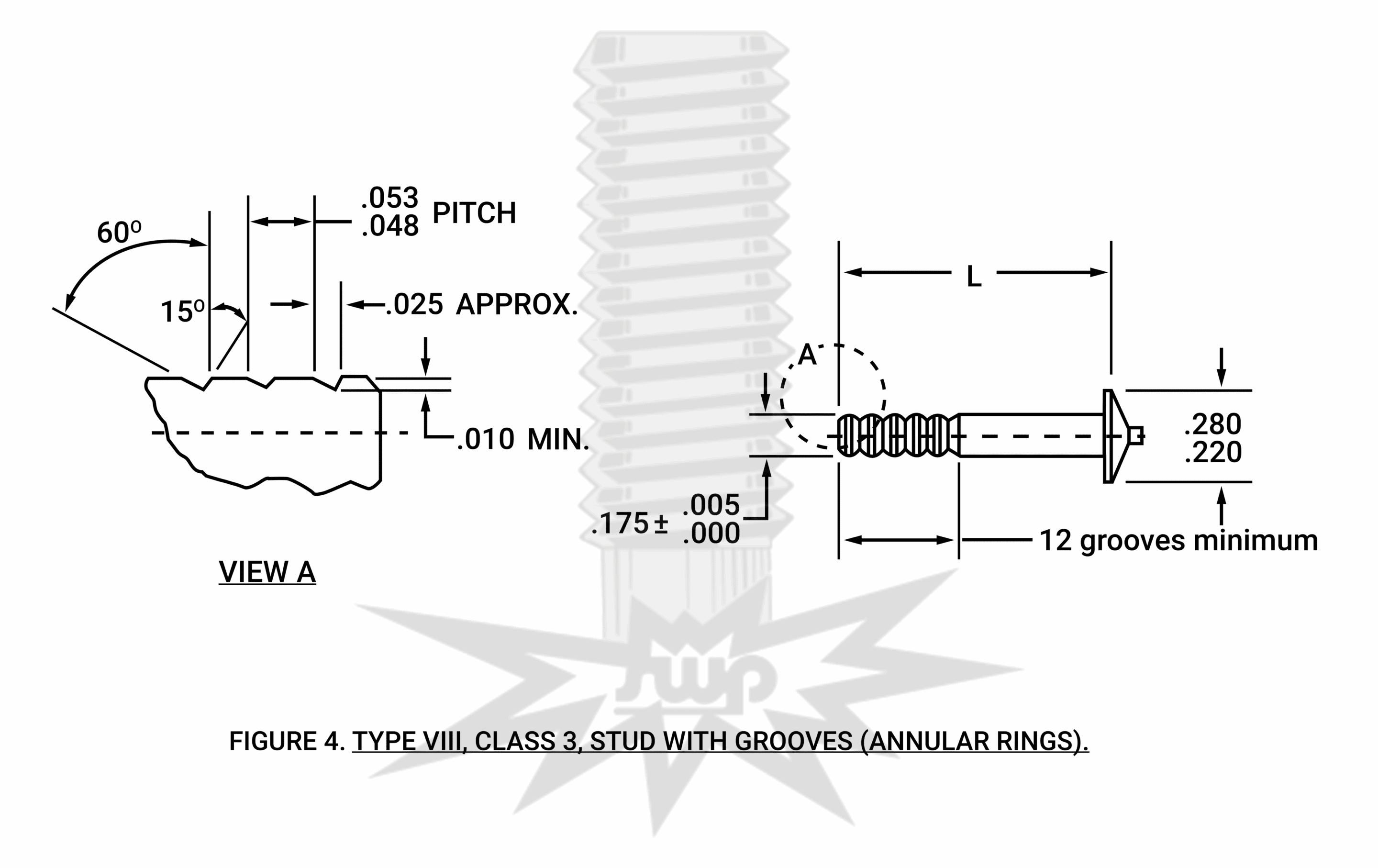

MIL-S-24149/6 TYPE VIII, CLASS 3, STUD WITH GROOVES
This specification is approved for use within the Naval Sea Systems command, Department of the Navy, and is available for use by all Departments and Agencies of the Department of Defense.
| L ±0.031 | M24149/6 dash no. |
|---|---|
| 0.625 | -201 |
| 0.750 | -202 |
| 0.875 | -203 |
| 1.000 | -204 |
| 1.125 | -205 |
| 1.250 | -206 |
| 1.375 | -207 |
| 1.500 | -208 |
| 1.625 | -209 |
| 1.750 | -210 |
| 1.875 | -211 |
| 2.000 | -212 |
| 2.250 | -213 |
| 2.500 | -214 |
| 2.750 | -215 |
| 3.000 | -216 |
NOTES:
1. Dimensions are in inches. Unless otherwise specified, tolerances: decimals plus or minus 0.015 angles plus or minus 1 degree.
