Description
MSNS-0875 Annular Ring Navy Stud
Part No. MSNS-0875
Material: Mild Steel
Annular Ring Navy Studs are available in both low carbon steel and aluminum. All our of Annular Navy Ring Studs conform to military specifications as outlined in MIL-S-24149 covering weld studs for Capacitor Discharge (CD) Welding. Can be secured with navy mushroom cap.

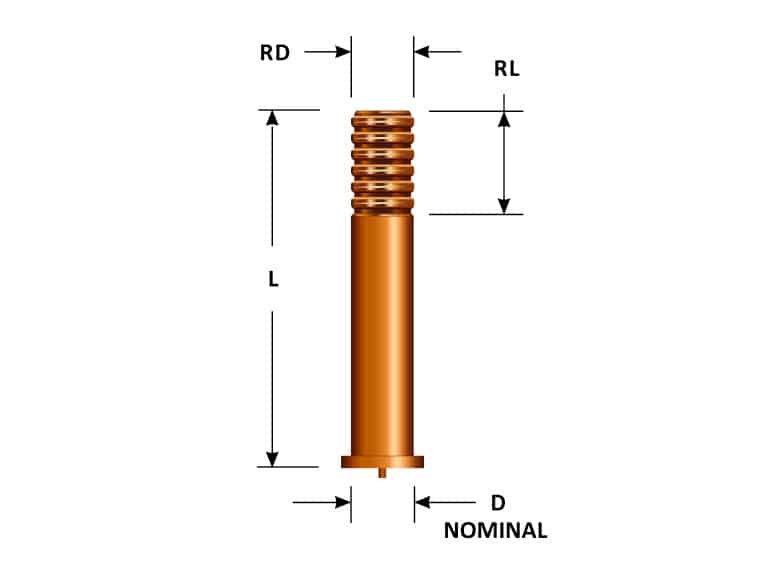

| PART NO. | MATERIAL | "L" | "D" | Wgt/M |
|---|---|---|---|---|
| MSNS-0875 | MILD STEEL | 7/8" | .175/ .180 | 6.4 |
| MSNS-1875 | MILD STEEL | 1 7/8" | .175/ .180 | 12.9 |
| MSNS-2875 | MILD STEEL | 2 7/8" | .175/ .180 | 20.0 |
| ALNS-0875 | ALUMINUM | 7/8" | .175/ .180 | 2.2 |
| ALNS-1875 | ALUMINUM | 1 7/8" | .175/ .180 | 4.7 |
| ALNS-2875 | ALUMINUM | 2 7/8" | .175/ .180 | 7.5 |
Capacitor Discharge (CD) Stud Welding
Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. Small diameter fasteners (1/4″ and under) are end welded to extremely thin gauge parent metal. The CD process operates on the principle of capacitor stored energy. The equipment system instantaneously discharges through a special weld “timing” tip. The entire weld cycle completes in several milliseconds. Welds can be made to thin sheet without pronounced distortion, burn-through or discoloration. CD welding can use dissimilar metals.
