Perforated Base Insulation Hanger

From $58.40

Insul-Hangers are secured with General Purpose Adhesive, specially formulated to bond to metal, masonry and other sound substrates.

Insul-Hangers have 12 ga (.106″/2.7mm) diameter mild steel spindles with a corrosion resistant coating.

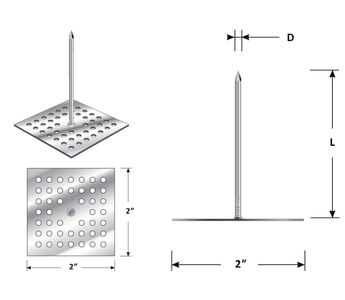

Perforated Base Plate is 2″ (51mm) square and is made of galvanized steel.

Standard Lengths Range from 1″ (25mm) through 9 1/2″ (241mm).

Other materials (Stainless Steel, Aluminum), packaging (100 packs), lengths and configurations (curved base, nibbed) are available on special order.

*** ALL HANGERS ARE SOLD IN FULL BOX QUANTITIES ***

****Washers Sold Separately****

PERFORATED BASE HANGER Spec Sheet

SKU: N/A Category:

Description

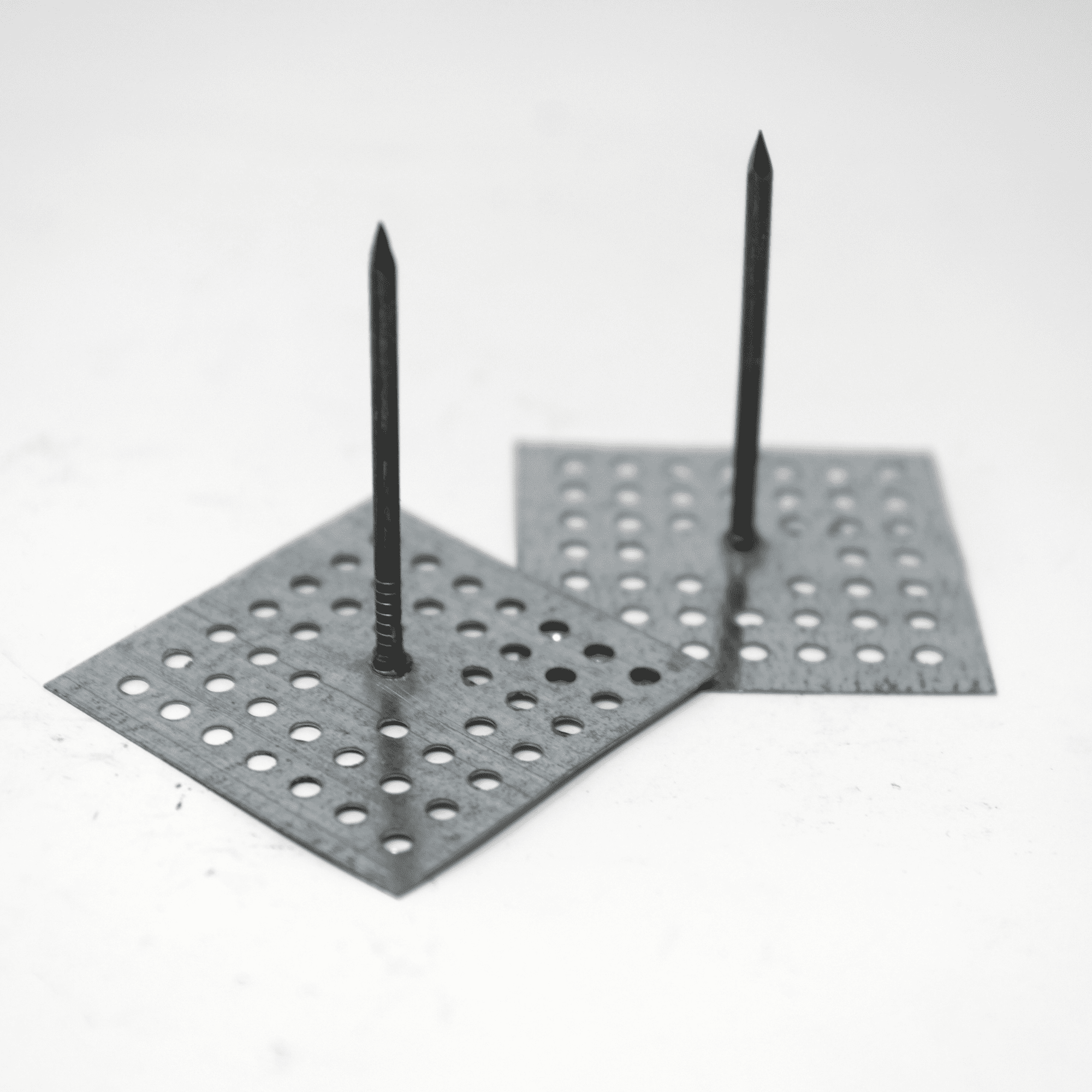

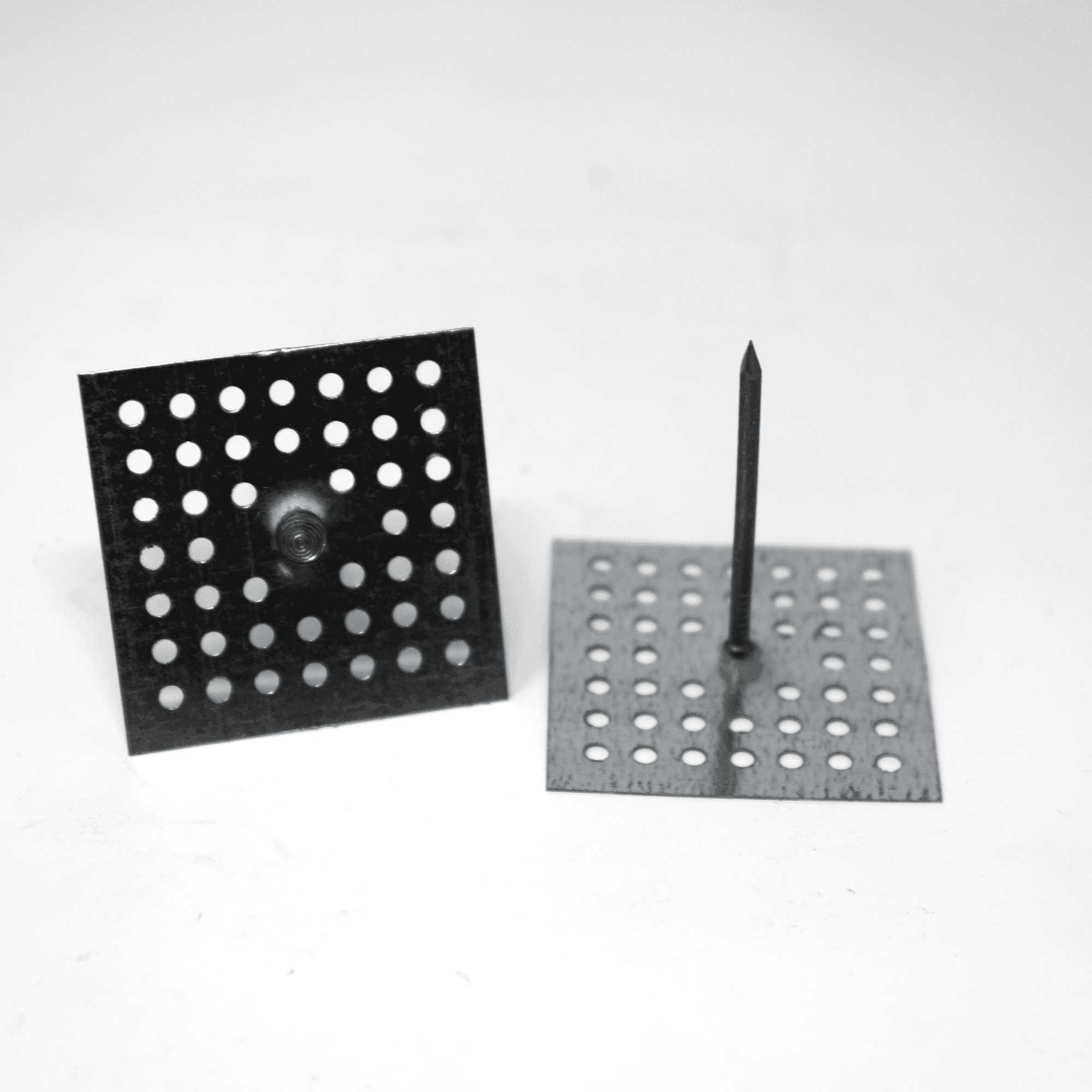

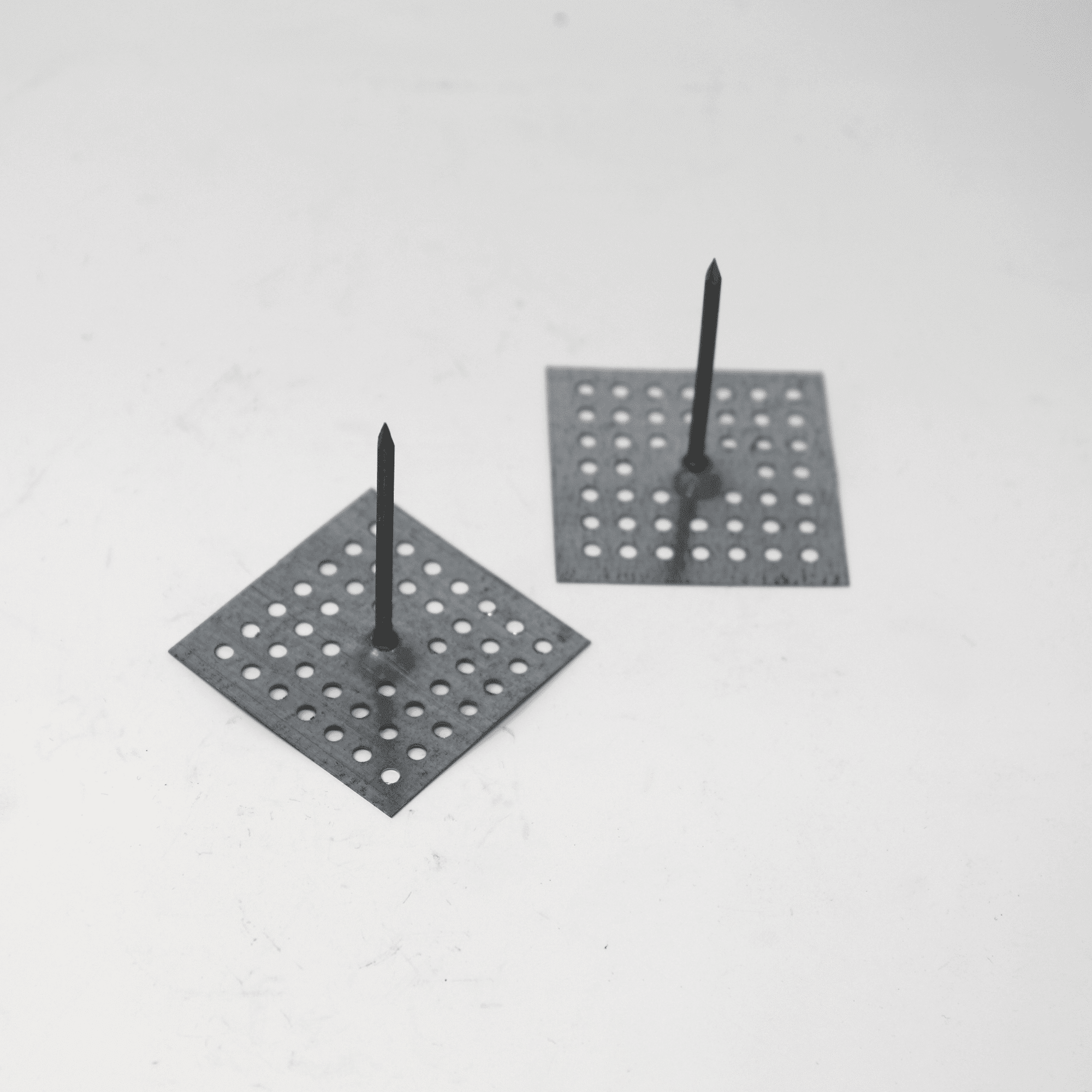

Perforated Base Insulation Hanger



A Perforated Base Insulation Hanger is used to attach insulation with the use of general purpose adhesive. Surfaces must be clean and dry before adhesive is applied. Some protective coatings are not compatible with adhesives and it is recommended that the user make test bonds before proceeding with the application. After the hanger is installed, insulation is impaled over the spindle and secured with a self-locking washer.
