RP-9 Resistance Type Weld Pins

Resistance Type Weld Pins used with a capacitor discharge (CD) stud welder, where the pin is pushed through the insulation and welded to the metal surface in one step.

DYNAPOINT RP-9 CUPPED WELD PINS Spec Sheet

Category:

Description

RP-9 Resistance Type Weld Pins

RP-9 Resistance Type Weld Pins used with a capacitor discharge (CD) stud welder. The pin is pushed through the insulation and welded to the metal surface in one step.

*Longer lengths are available upon request.

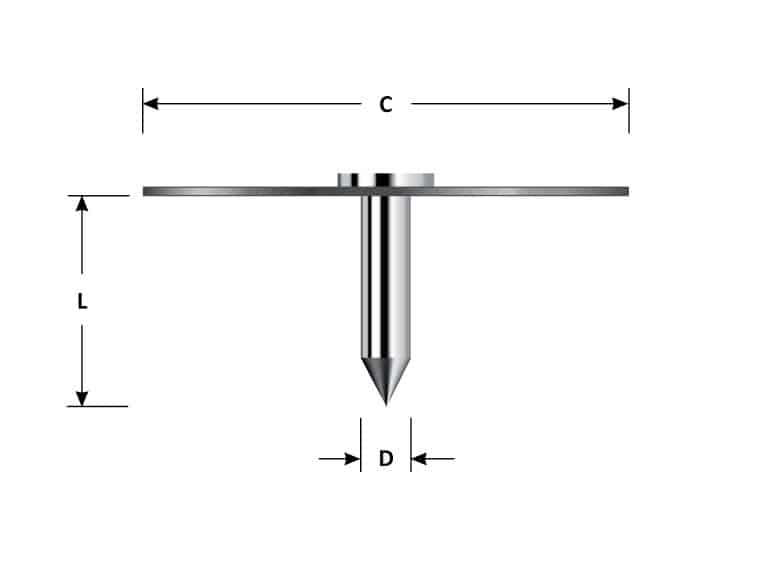

SPECIFICATIONS
DCL
.1351"1/2" MIN

 SPINDLEWASHER
Material SpecificationMILD STEEL MILD STEEL
PlatingZINC/GALVANIZEDZINC/GALVANIZED
PART NO PACKWGT/MRECOMMENDED USE
RP-9-0500-11M6.5FOR 1/2" DUCT LINER
RP-9-0500-55M6.5FOR 1/2" DUCT LINER
RP-9-0750-11M7.6FOR 1" DUCT LINER
RP-9-0750-55M7.6FOR 1" DUCT LINER
RP-9-1000-11M8.6FOR 1" HIGH DENSITY DUCT LINER
RP-9-1000-55M8.6FOR 1" HIGH DENSITY DUCT LINER

Capacitor Discharge (CD) Stud Welding

Capacitor Discharge (CD) Stud Welding is a semi-automatic arc welding process. Small diameter fasteners (1/4″ and under) are end welded to extremely thin gauge parent metal. The CD process operates on the principle of capacitor stored energy. The equipment system instantaneously discharges through a special weld “timing” tip. The entire weld cycle completes in several milliseconds. Welds can be made to thin sheet without pronounced distortion, burn-through or discoloration. CD welding can use dissimilar metals.
