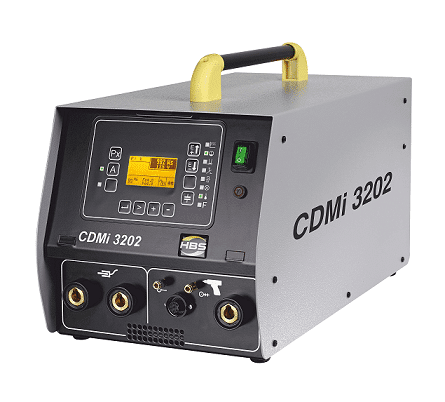

CDMi 3202 Individual Stud Welder

Stud Welding unit with digital display, for CD stud welding according to current standards

CDMi 3202 Spec Sheet

  • Size: 18-3/4" length, 8" width, 9" height
  • Weight: 34 lbs
  • Weld Range: 14 ga. through 3/8"
  • Duty Cycle: 30 studs per minute
  • Primary Power: 110 VAC
  • Charge Voltage: 35-200 VDC
  • Cable Length: Includes a #4 x 25' gun cable and (2) pcs #4 x 15 ground cable


The CDMi 3202 is a high-quality and dependable upgrade to your current stud welding system! See the features of this advanced automated system below:

Key Features

  • Welding range #4 to 7/16″
  • The CDMi 3202 Individual Stud Welder is especially suitable for thin sheets (at least 0.5 mm).
  •  Microcontroller – for precise process times, optimal functional reliability and maximum operating convenience.
  •  Function monitoring – automatic function test following power-up; monitoring of all internal system functions.
  • Display of error codes – on digital display.
  • The CDMi 3202 Individual Stud Welder features high quality structure: extremely easy to operate, compact, robust – powder coated steel housing withstands rough treatment in shop and on site.
  • Two ground connections – direct coupling of several stud welding machines possible when installed in complex welding systems
  • Retriggering lock-out – prevents welding on a welding element that has already been welded
  • Graphic display – clear operator guidance via large LCD display
  • 15 programs can be stored – in every program, the parameters (charging voltage, capacity, CP settings and automatic settings) can be selected digitally via a superior control system and specific to the application
  • And many more!
