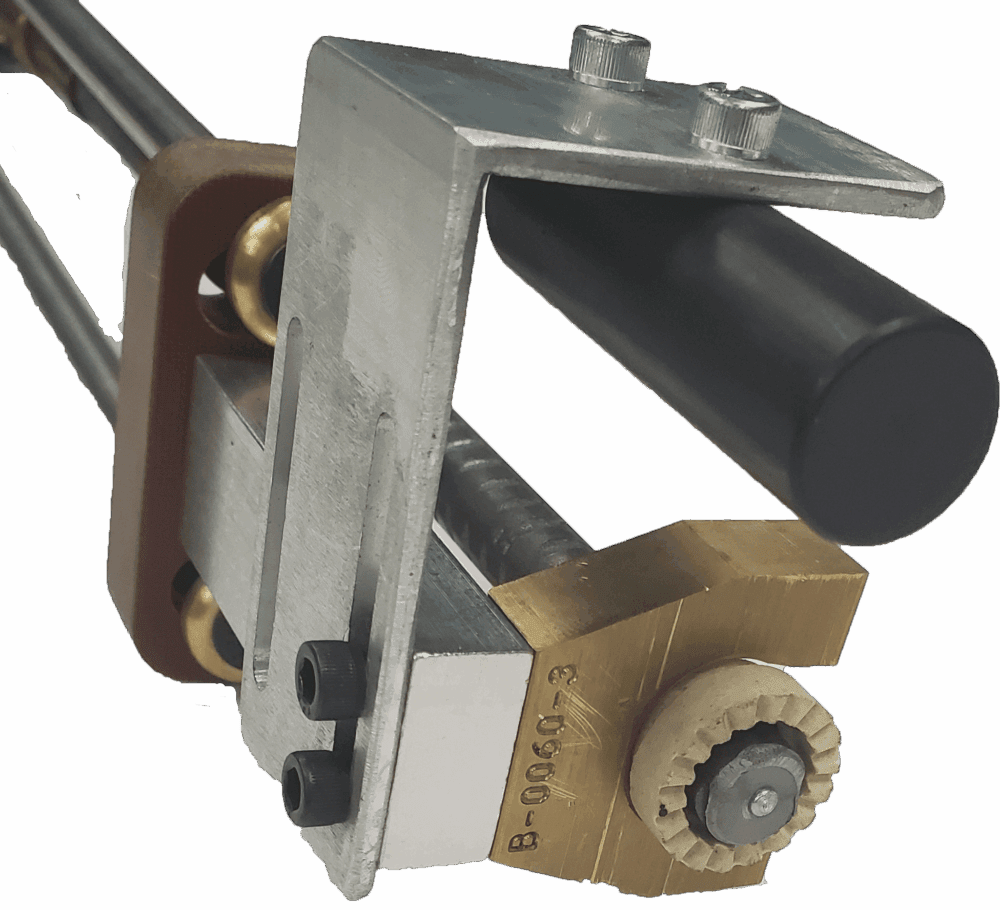

D-Bar Elevation Tool


Save time and energy by eliminating the layout process of weld bars in the field. Our D-bar elevation tool is fully adjustable allowing you the ability to install the bars at a precise height location on any perimeter edge. The tools rests on any edge keeping the bar in place during the weld process. Say goodbye to bars slipping down during the weld cycle.

D-Bar Elevation Tool Spec Sheet

SKU: B-0021-5 Category:

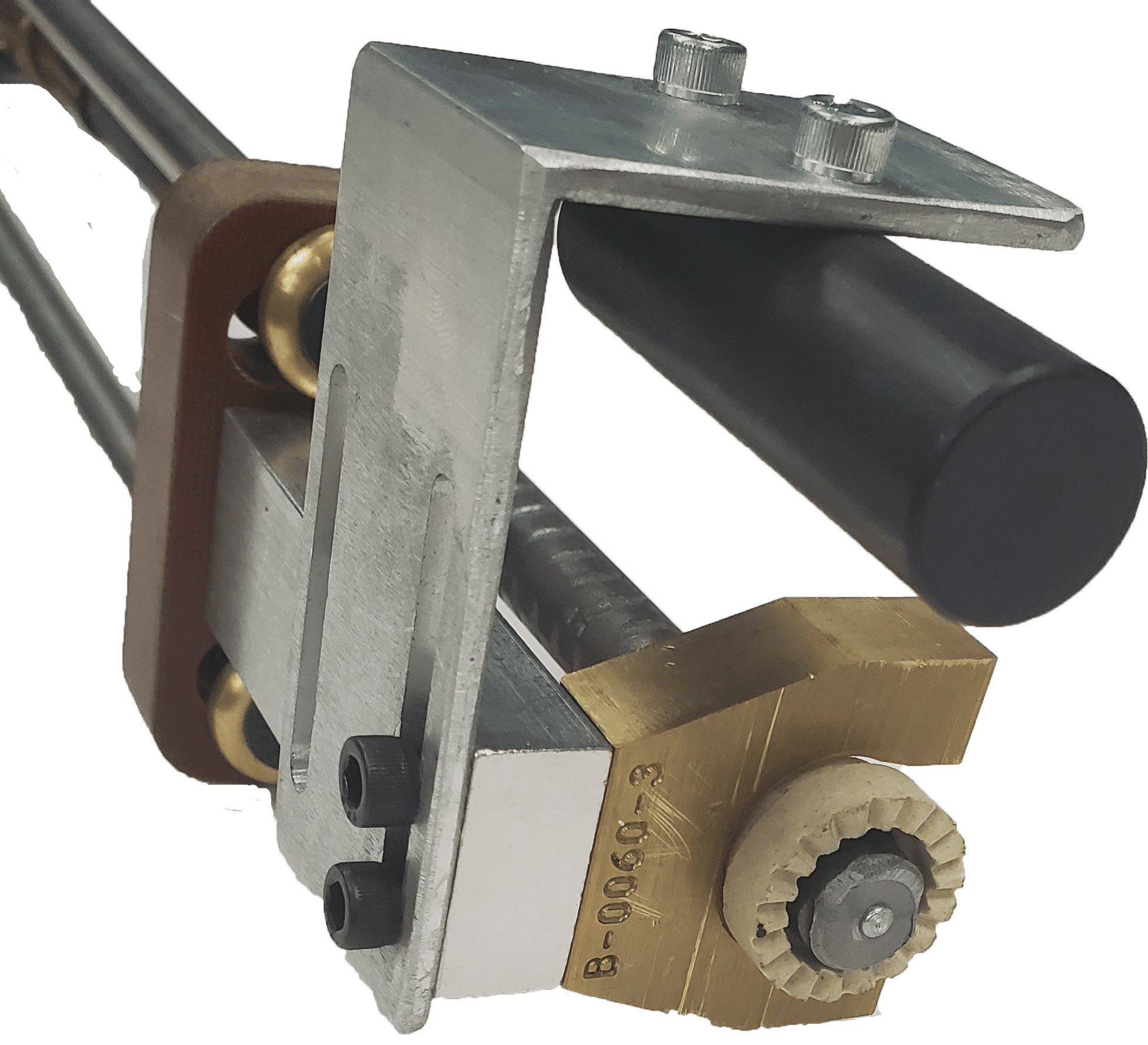

The D-bar elevation tool installs on the outside of the rectangular extension bar using (2) 10-32 x ¾” socket screws.
