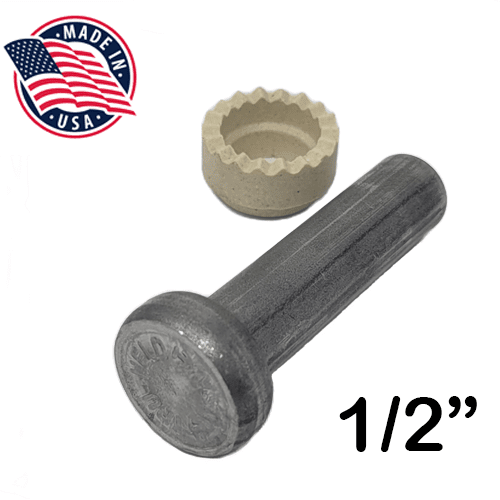

Headed Concrete Anchor Studs 1/2″

From $208.00

Made in USA with Certs provided

Headed Anchor Studs are used in all types of concrete connections. They can be welded to a flat surface, inside an angle , or on the heel of an angle using a stud welding system.

Length: Length is before weld. Stud diameters (D) 1/2 inch and below will be approximately 1/8 inch shorter after welding. 5/8 inch will be approximately 3/16 inch shorter after welding. Made to order lengths are available upon request.

We can bend the product to your specification upon request. Headed studs can be stud welded in the bent position using the correct accessories.

ESR-2577      Ferrule Spec Sheet       Shipping Weights         LA City Approval

*** ALL HEADED STUDS ARE SOLD IN FULL BOX QUANTITIES & SHIPPED WITH FLAT FERRULES ***

SKU: N/A Category:

Description

Headed Concrete Anchor Studs (1/2″)

Arc stud welding is a process by which a metal fastener is welded to a parent metal through a fusion weld. Using a “ferrule” to capture and retain the weld’s heat, the molten metal created by the process cools the weld site and produces a weld that is stronger than the stud itself. Drawn arc stud welding can be used with dissimilar metals such as mild and stainless steel, as well as aluminum.

Our Headed Concrete Anchor studs are composed of low-carbon steel. All purchases of headed concrete anchor studs come with the necessary ferrules required for welding, so you do not have to worry about making sure you have the necessary parts!

To view our full selection of capacitor discharge studs and arc studs, click here. Click here to view our selection of arc stud welders.

Have Questions?

For more information on this product, email us at Info@studweldprod.com or call our office at 800-252-1919 and we will get back to you shortly!

Available Stock Sizes


Headed Steel Studs MSDS
              Headed Stainless Steel MSDS        Ferrule MSDS

1/4" Spec Sheets3/8" Spec Sheets1/2" Spec Sheets5/8" Spec Sheets
HCA 14 118HCA 38 138HCA 12 118HCA 58 1716
HCA 14 21116HCA 38 158HCA 12 158HCA 58 11116
HCA 14 318HCA 38 218HCA 12 218HCA 58 2316
HCA 14 418HCA 38 258HCA 12 258HCA 58 21116
HCA 38 318HCA 12 318HCA 58 3316
HCA 38 418HCA 12 358HCA 58 31116
HCA 38 518HCA 12 418HCA 58 4316
HCA 38 618HCA 12 518HCA 58 41116
HCA 38 818HCA 12 5516HCA 58 5316
HCA 12 618HCA 58 6316
HCA 12 818HCA 58 8316
HCA 12 1018HCA 58 9316
HCA 12 1218HCA 58 10316
Mechanical Property Requirements
Type AType B
Tensile Strength61,000 psi min.65,000 psi min
Yield Strength49,000 psi min51,000 psi min
Elongation
(% in 2 in)
17% min.20% min.
Elongation
(% in 5x dia.)
14% min.15% min.
Reduction of Area50% min.50% min.
MaterialLow Carbon Steel (1010-1020) ASTM A29
Type A Studs are general purpose studs

Type B Studs are headed, bent, or of other configuration that are used as an essential component in composite beam design
