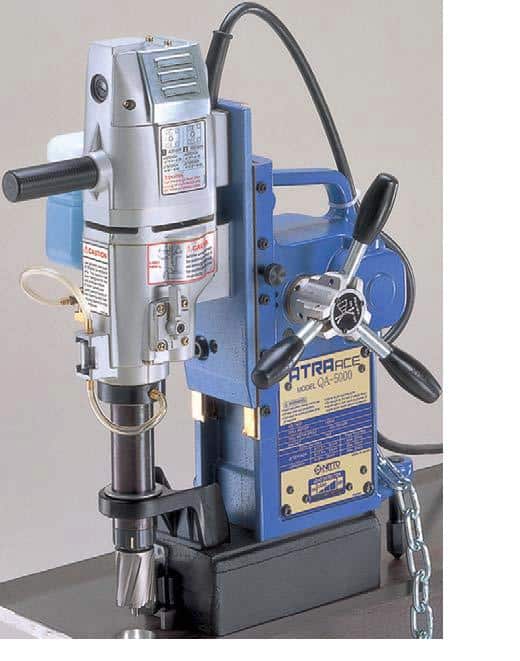

Nitto Kohki QA-5000 Automatic Drill (2″ x 2″ Hole Capacity)


QA-5000 Quick Facts:

Model QA-5000
Power Source (single phase) 110-120 V AC 50/60Hz
Rated Power Consumption 1,010 w
Rated Current 9 A
No Load Speed 400/750 rpm
Magnet Power Consumption 75 w
Hole Diameter Capacity 2″ Max
Depth of Cut Capacity 2″ Max
Magnet Holding Power 2,200 lbs
Magnet Dimensions 3-15/16″ x 7-15/16 “
Weight 57 lbs
Included Accessories
  • UEA0835-0 pilot pin 5/16″ x 1-3/8 ” DOC
  • UEA0850-1 pilot pin 5/16″ x 2″
  • 3 & 4 mm allen wrench
  • 8 mm x 10 mm combination spanner
  • chip guard assembly
  • motor side handle
  • sample cutting fluid
  • safety chain
  • Tool box

QA 5000 Spec Sheet

SKU: QA 5000 Category:


The Nitto Kohki QA-5000 Automatic Drill vastly reduces drilling time while offering versatile and powerful service!

Check out the features of this Nitto Kohki automatic drill below:

  • Capacity: Large 2″ x 2″ max hole drilling capacity makes this drill useful for large-scale projects!
  • Automatic Feed: This automatic drill boasts an automatic feed system that reduces drilling time by 30%!
  • Protection: Chip breaker prevents chip nesting!
  • Cooling system: Automatic cooling system reduces coolant waste by increasing coolant efficiency!
  • Simple: One-touch arbor system means no tools are required for cutter installation or removal!
  • Speed: Powerful 1010 watt motor is equipped with a two speed (400/750) rpm gear box!

Stud Welding Products offers a 1-year limited warranty on all Nitto Kohki Drills! Each purchase includes a convenient carrying case and sample cutting fluid. Click here to see Nitto Kohki drills in action!
