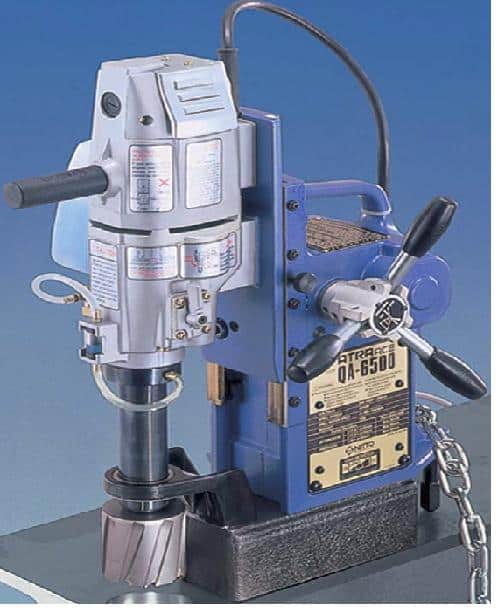

Nitto Kohki QA-6500 Automatic Drill (2-9/16″ x 2″ Hole Capacity)


QA-6500 Quick Facts:

Model QA-6500
Power Source (single phase) 220-240 V AC 50/60Hz
Rated Power Consumption 1,010 w
Rated Current 4.5 A
No Load Speed 400/750 rpm
Magnet Power Consumption 75 w
Hole Diameter Capacity 2-9/16″ Max
Depth of Cut Capacity 2″ Max
Magnet Holding Power 2,200 lbs
Magnet Dimensions 3-15/16″ x 7-15/16″
Weight 57 lbs
Included Accessories
  • UEA0835-0 pilot pin 5/16″ x 1-3/8 ” DOC
  • UEA0850-1 pilot pin 5/16″ x 2″
  • 3 & 4 mm allen wrench
  • 8 mm x 10 mm combination spanner
  • chip guard assembly
  • motor side handle
  • sample cutting fluid
  • safety chain
  • Tool box

QA 6500 Spec Sheet

SKU: QA 6500 Category:


The Nitto Kohki QA-6500 is our premium, top-of-the-line automatic drilling machine!

  • Load Detection: Simple monitor shows drill status and informs user of cutter health!
  • Power: This drilling machine boasts a powerful 220 volt motor with two speed (400/750 rpm) gear box!
  • Capacity: the 2-9/16″ x 2″ hole drilling capacity means this drill is suited for heavy-duty projects!
  • Automatic Feed: The ingenious auto-feed feature means you can drill more, faster!
  • Safety: Built-in motion detection system and non-restart features mean this drill only operates when you want it to!
  • Automatic Cooling: This automatic drilling machine comes rigged with an efficient cooling system, eliminating coolant waste and increasing drilling efficiency!

Stud Welding Products offers a 1-year limited warranty on all Nitto Kohki Drills! Each purchase includes a convenient carrying case and sample cutting fluid. Click here to see Nitto Kohki drills in action!

Not What You’re Looking For?

See our full line of Nitto Kohki Automatic Drilling Machines here and click here to view a short blog on the benefits of automatic drills! For our cutters, click here.


If you have any questions about this product or others, email us at or call our office at 800-252-1919 and we will get back to you as soon as we can!
