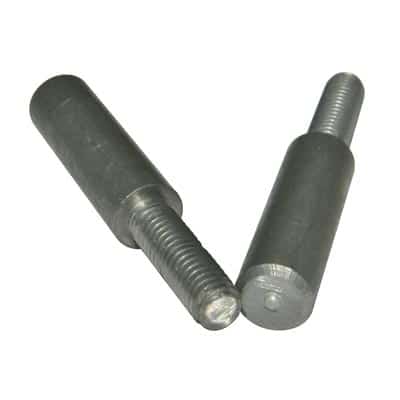

SS 1420 38 Shoulder Studs
Part No. SS 1420 38
Shoulder Studs are used where additional shear strength is required at the weld.
Composed of low-carbon steel or stainless steel.
All purchases of Shoulder studs come with the necessary ferrules required for welding, so you do not have to worry about making sure you have the necessary parts!
How To Order
Specify diameter, thread size before weld (BW) length, type of material. Ex: 1/2-13 x 1-1/8” (BW) partial thread (PT), mild steel
When ordering Stainless Steel, SS will be added to the part number. Ex: Partial Thread Stainless Steel 1/4-20×1”= PCPSS 1420 1
Diameters 9/16” and below will be 1/8” shorter AFTER weld. Diameters 5/8″ – 7/8” will be 3/16” shorter AFTER weld. Diameters 1- 1 1/4” will be 1/4” shorter AFTER weld
| D | T | B | L |
|---|---|---|---|
| 1/4-20 | 3/8 | 3/8 | 3/7 |
| 5/16-18 | 7/16 | 7/16 | 7/8 |
| 3/8-16 | 1/2 | 1/2 | 1 |
| 1/2-13 | 11/16 | 5/8 | 1-1/4 |
| 5/8-11 | 11/16 | 3/4 | 1-9/16 |
| 3/4-10 | 13/16 | 7/8 | 1-7/8 |
| 7/8-9 | 13/16 | 1/4 | 1-7/8 |
| Low Carbon Mechanical Property Requirements | Stainless Steel | ||
|---|---|---|---|
| Tensile Strength | 61,000 psi min. | Material: Stainless Steel AISI grade - 302/304/316. Other grades available upon request. Mechanical Properties: Values for various grades available upon request. |
|
| Yield Strength | 49,000 psi min. | ||
| Elongation (% in 2 in.) | 17% min. | ||
| Elongation (% in 5x dia.) | 14% min. | ||
| Reduction of Area | 50% min. |
