How a Stud Welding Gun Works

If you’ve ever watched a stud welding operation, the process can look almost instantaneous. A stud is placed against the workpiece, the operator pulls the trigger, and less than a second later the stud is permanently attached.

But a lot happens inside that short welding cycle.

A stud welding gun does more than hold the stud. It positions it, starts the welding cycle, creates and controls the arc, and plunges the stud into the molten weld pool at the right time.

The gun works together with the stud welding power source, welding cables, ground connection, stud, and—in drawn arc applications—the ceramic ferrule to create a controlled welding system.

Understanding how the gun works helps you troubleshoot inconsistent welds, set up equipment correctly, and identify whether the problem comes from the gun, power source, or welding parameters.

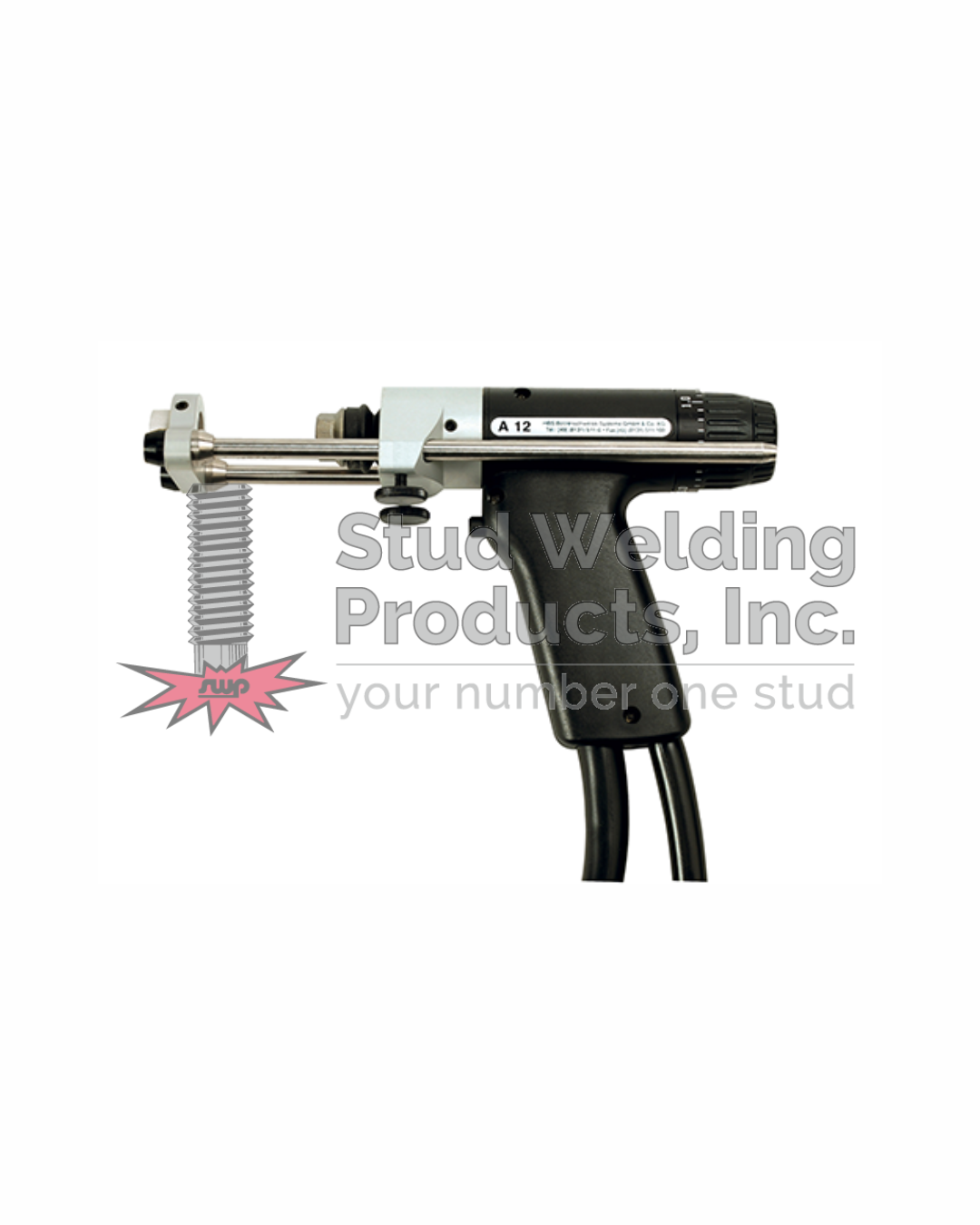

What Is a Stud Welding Gun?

A stud welding gun is the hand-held or fixture-mounted tool that positions and controls the weld stud during the welding cycle.

Unlike a conventional welding gun or torch, the operator doesn’t manually manipulate the arc. Instead, the stud welding gun performs a controlled mechanical sequence.

For a typical drawn arc application, the gun:

• Holds the stud in a chuck.
• Positions the stud against the workpiece with the ceramic ferrule.
• Initiates the welding circuit when the trigger is activated.
• Lifts the stud a predetermined distance.
• Maintains the arc during the programmed weld time.
• Releases the lifting mechanism.
• Plunges the stud into the molten weld pool.
• Holds the stud in position while the weld solidifies.

This process is a coordinated lift-and-plunge sequence controlled by the gun and power source.

The gun therefore serves as both a mechanical positioning device and an electrical control component within the overall stud welding system.

The Main Components of a Stud Welding Gun

While stud gun designs vary between manufacturers and welding processes, most drawn arc stud welding guns contain several basic components.

1. Chuck

The chuck holds the weld stud in the gun.

Must grip the stud securely while still allowing the stud to move vertically during the lift and plunge portions of the welding cycle.

Different stud diameters require appropriately sized chucks. Using the wrong chuck can affect stud alignment, movement, and overall weld consistency.

It is also a replaceable wear component, so it should remain clean and in good condition.

A worn or damaged chuck can prevent the gun from holding the stud properly or allow excessive movement during the welding cycle.

2. Ferrule Grip & Ceramic Ferrules

Drawn arc stud welding commonly uses a ceramic ferrule around the base of the stud.

The ferrule performs several important functions. It helps contain the molten metal, shields the weld area from atmospheric contamination, helps stabilize and concentrate the arc.

Additionally it helps form the weld collar around the base of the stud.

Ferrule grip holds that ceramic ferrule in position while the welding cycle takes place.

After the weld cools, the disposable ferrule is normally broken away to expose the finished weld.

3. Legs and Foot Pieces

Many drawn arc stud welding guns use adjustable legs and a foot assembly to position the ferrule and stud against the workpiece.

The foot helps establish the correct relationship between the gun, ferrule, stud, and base material.

The gun must sit squarely against the workpiece. If it moves or sits at an incorrect angle, the stud can become misaligned and produce a poor weld.

4. Spring

The spring plays an important role during the plunge portion of the welding cycle.

The gun’s mechanism stores energy as it lifts the stud, then releases it to drive the stud back into the workpiece at the right time.

This movement must occur at the correct time and with the appropriate speed.

Too much or too little plunge can affect the weld.

5. Solenoid or Lifting Mechanism

The solenoid provides the controlled lifting action used in many drawn arc stud welding guns.

When the welding cycle begins, the solenoid energizes and pulls the stud away from the workpiece.

That movement creates the arc.

When the programmed arc time ends, the solenoid releases and the spring forces the stud back into the molten weld pool.

How the Stud Welding Gun Creates the Arc

To understand how the gun works, it helps to look at the welding cycle step by step.

Step 1: Load the Stud

Operator first loads the correct stud into the chuck.

For drawn arc welding, a ceramic ferrule is also installed into the ferrule grip.

The stud must extend the correct distance beyond the ferrule. This depends on the stud, gun, and welding application.

Step 2: Position the Stud Gun

The operator places the stud gun with the weld stud against the workpiece.

It should sit properly against the base material, and the stud gun should remain square to the workpiece.

At this point, the stud is touching the workpiece and the electrical circuit is complete.

The gun’s spring mechanism also takes up the appropriate amount of plunge.

Step 3: Pull the Trigger

When the operator pulls the trigger, the gun and power source begin the automatic welding sequence.

The trigger doesn’t simply turn the welding current on and off.

Instead, it initiates a precisely timed series of mechanical and electrical events.

The gun and power source coordinate the current, lift, arc time, and plunge.

Step 4: Lift the Stud

Gun’s lifting mechanism energizes and pulls the stud away from the workpiece.

This creates a small gap between the end of the stud and the base material.

The electrical current continues to flow across this gap, creating the welding arc.

This is why the process is called drawn arc stud welding.

The stud gun physically draws the stud away from the workpiece to establish the arc.

Why Lift Matters

Lift is one of the most important stud gun adjustments in drawn arc stud welding.

It’s the distance the stud gun raises the stud above the workpiece during the welding cycle.

Determines the arc length and improper lift can produce unsatisfactory welds.

The recommended lift is based on stud diameter.

Exact settings should always come from the equipment manufacturer’s specifications for the particular stud gun, stud, and process.

Incorrect lift can create several welding problems.

Possible symptoms include:

• Cold-looking welds
• Inconsistent weld collars
• Incomplete fusion
• Excessive or insufficient burn-off
• Arc instability
• Inconsistent weld strength
• Difficulty establishing the arc

Step 5: The Arc Melts the Stud and Workpiece

Once the stud lifts and establishes the arc, the arc generates intense heat.

That heat melts the end of the stud and a corresponding area of the base material.

The welding power source controls the electrical energy, while the stud gun maintains the mechanical position required for the process.

The exact current and weld time depend on factors such as:

• Stud diameter
• Stud material
• Base material
• Welding process
• Power source
• Stud Gun
• Weld settings

The objective is to generate enough heat to create the required molten weld pool without overheating the surrounding material.

Step 6: The Gun Plunges the Stud

Once the programmed welding time ends, the lifting mechanism releases the stud.

The stud gun’s spring then drives the stud toward the workpiece.

The molten end of the stud enters the molten weld pool in the base material.

The two molten areas combine.

The arc extinguishes when the stud contacts the workpiece.

The combined molten material then begins to solidify, creating the permanent weld.

Step 7: The Weld Solidifies

Once the stud plunges into the molten weld pool, the welding current stops and the metal begins to cool.

The operator should keep the stud gun steady during this portion of the cycle.

After the weld has solidified sufficiently, the operator can remove the stud gun.

For drawn arc welding with a ceramic ferrule, the ferrule is then removed to expose the finished weld collar.

The resulting weld extends across the base of the stud rather than simply attaching the outside edge of the stud to the surface.

What Does the Ceramic Ferrule Do?

The ceramic ferrule plays an important role in traditional drawn arc stud welding.

It isn’t simply a holder for the stud.

During the weld, the ferrule:

• Shields the molten weld pool from the atmosphere
• Helps stabilize the arc
• Concentrates the welding heat
• Contains molten metalHelps form the weld collar
• Helps protect the operator from arc radiation and spatter

The ferrule is normally a single-use consumable.

After the weld cools, the operator breaks the ferrule away from the stud.

Why the Gun Must Stay Square

The gun’s position can have a direct effect on the quality of the finished weld.

Ideally, the stud should enter the workpiece perpendicular to the surface.

If the operator holds the gun at an angle, the stud can approach the workpiece unevenly.

This can affect:

• Stud alignment
• Ferrule seating
• Arc behavior
• Weld collar appearance
• Plunge movement
• Final stud position

The operator should therefore hold the gun firmly and squarely against the workpiece throughout the welding cycle.

Drawn Arc vs. Capacitor Discharge Guns

Not every stud welding gun operates in exactly the same way.

The two major stud welding processes are drawn arc (DA) and capacitor discharge (CD).

Drawn Arc Stud Welding

In drawn arc welding, the stud gun:

• Positions the stud against the workpiece.
• Lifts the stud.
• Creates an arc.
• Maintains the arc for the programmed weld time.
• Melts the stud and base material.
• Plunges the stud into the molten pool.

Drawn arc welding commonly handles larger studs and heavier applications.

Ceramic ferrules are commonly used to shield and contain the weld pool.

Capacitor Discharge Stud Welding

Capacitor discharge, or CD, welding works differently.

Instead of using a continuous welding current, the power source stores energy in capacitors and releases it in a short burst.

Many CD studs have a small ignition tip on the end.

When the gun activates the welding cycle, the stored energy is discharged through the stud. The ignition tip is consumed and the resulting energy creates the weld.

The gun then pushes the stud into the base material.

CD welding is a rapid discharge process used for smaller studs and applications where minimizing heat input is important.

Because the process occurs so quickly, CD stud welding is particularly useful for thin materials and applications where minimizing backside marking, distortion, or discoloration matters.

Final Thoughts

A stud welding gun does more than hold the stud. It controls the movement needed to create a proper weld, while the power source provides the electrical energy.

When the gun, power source, stud, ferrule, cables, and ground connection work together properly, you get fast, consistent, and reliable welds.

Understanding how the gun works also makes it easier to troubleshoot problems and keep your equipment running properly.

If your stud welds aren’t turning out as expected, don’t overlook the gun. Knowing your equipment is key to producing consistent, reliable welds.
