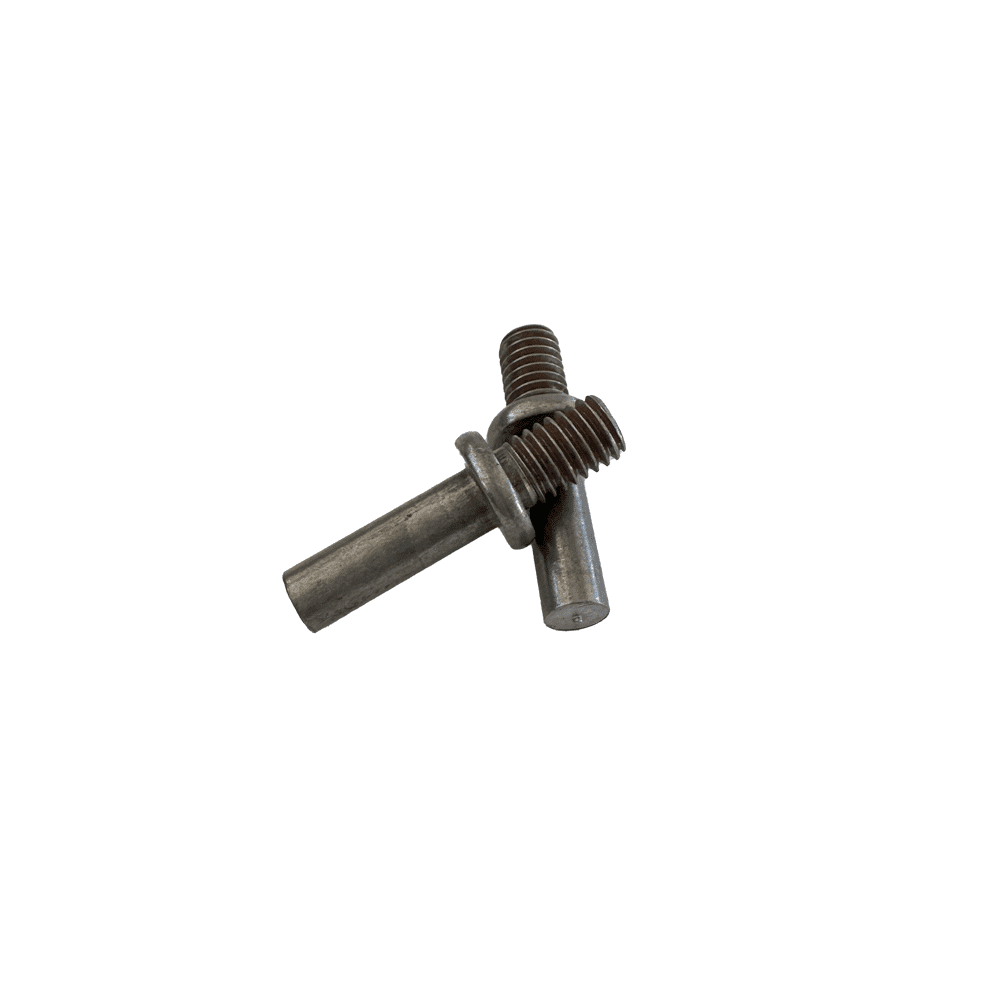

CD Collar Studs
Print CD Collar Stud & Tap Pad PDF
| A (Thread) | C | E | F |
|---|---|---|---|
| 1/4-20 UNC | 0.215 | 1/2” | 1/8” |
| 5/16-18 UNC | 0.275 | 5/8” | 1/8” |
| 3/8-16 UNC | 0.330 | 5/8” | 1/8” |
HOW TO ORDER
Specify base diameter, before weld (BW) length to the top of the collar, thread size and length, type of material.
Example: .330 x 1-1/2”(BW) with a 3/8-16 x 3/4” thread extension, collar stud (CK), mild steel
Material: Mild Steel (MS), Stainless Steel (SS) and Aluminum (AL)
Plating: All mild steel studs are copper plating (nickel plating upon request)
Annealing: all studs are annealed where required.
