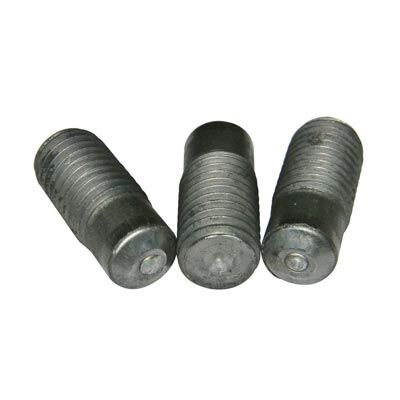

Partial Thread Studs

Stud Specification
DMin. LFD-Weld Fillet DiaFH-Weld Fillet Height
1/4-203/45/163/32
5/16-183/413/327/64
3/8-163/47/167/64
7/16-147/81/21/8
1/2-137/819/325/32
5/8-1113/43/16
3/4-101-3/167/81/4
7/8-91-11/1615/16
1-81-11/161-1/85/16

Print Partial Thread PDF                  Ferrule Spec Sheet             Shipping Weight

Length: Length is listed before weld. Studs diameters 1/2” and below will be approx. 1/8” shorter after welding. 5/8” will be approx. 3/16” shorter after welding.

Material: Low carbon steel, ASTM A29, 1010 1020. PCP studs are also available in weld able stainless steel. Type 302 is the most commonly used, however other grades such as 302, 304, 316, 321, 310, and 430 are available when required.

Category:

Description

Partial Thread Studs are used in all types of applications. They can be welded to a flat surface, or to the inside or outside of an angle.

Arc stud welding is a process by which a metal fastener is welded to a parent metal through a fusion weld. Using a “ferrule” to capture and retain the weld’s heat, the molten metal created by the process cools the weld site and produces a weld that is stronger than the stud itself. Drawn arc stud welding can be used with dissimilar metals such as mild and stainless steel, as well as aluminum.

Our Partial Thread studs are composed of low-carbon steel. All purchases of Partial Thread studs come with the necessary ferrules required for welding, so you do not have to worry about making sure you have the necessary parts!

To view our full selection of capacitor discharge studs and arc studs, click here. Click here to view our selection of arc stud welders.

Have Questions?

For more information on this product, email us at Info@studweldprod.com or call our office at 800-252-1919 and we will get back to you shortly!

Available Common Sizes

Many Other Sizes Available, Send Us a Quote Request

1/4-20 5/16-18 3/8-16 1/2-13 5/8-11 3/4-10 7/8-9
PCP 1420 1 PCP 51618 78 PCP 3816 1 PCP 1213 1 PCP 5811 114 PCP 3410 112 PCP 789 2
PCP 1420 112 PCP 51618 1 PCP 3816 118 PCP 1213 118 PCP 5811 112 PCP 3410 2 PCP 789 212
PCP 1420 118 PCP 51618 112 PCP 3816 112 PCP 1213 112 PCP 5811 2 PCP 3410 212 PCP 789 3
PCP 1420 114 PCP 51618 118 PCP 3816 138 PCP 1213 2 PCP 5811 212 PCP 3410 3 PCP 789 312
PCP 1420 158 PCP 51618 114 PCP 3816 158 PCP 1213 212 PCP 5811 3 PCP 3410 312 PCP 789 4
PCP 1420 138 PCP 51618 138 PCP 3816 134 PCP 1213 3 PCP 5811 312 PCP 3410 4 PCP 789 412
PCP 1420 134 PCP 51618 158 PCP 3816 2 PCP 1213 312 PCP 5811 4 PCP 3410 412 PCP 789 5
PCP 1420 2 PCP 51618 134 PCP 3816 218 PCP 1213 4 PCP 5811 5 PCP 3410 5 PCP 789 512
PCP 1420 218 PCP 51618 2 PCP 3816 214 PCP 1213 412 PCP 5811 512 PCP 3410 512 PCP 789 6
PCP 1420 338 PCP 51618 3 PCP 3816 238 PCP 1213 5 PCP 5811 6 PCP 3410 6
PCP 51618 4 PCP 3816 258 PCP 1213 512
PCP 3816 234 PCP 1213 6
PCP 3816 278
PCP 3816 3
PCP 3816 318
PCP 3816 312
PCP 3816 4
PCP 3816 5
PCP 3816 6

How to Order
Specify diameter, thread size before weld (BW) length,type of material.
EXAMPLE
1/2-13 x 1-1/8” (BW) partial thread (PCP), mild steel.When ordering Stainless Steel, SS will be added to the part number. Example:Partial Thread Stainless Steel
1/4-20×1”= PCPSS 1420 1
