TWE 17000 Heavy Duty Stud Gun (1-1/4″ Dia. Max)


The TWE 17000 has been designed to fit comfortably for all hands, including when wearing a work glove. The neck of the handle has been tapered so that when grasped, the trigger can be accessed easily, without any unnecessary strain. The handle length allows for better balance of the stud gun and it keeps the welding cable and connector away from your hand, minimizing operator fatigue. Gun includes phoenix type connector.

The TWE17000 heavy duty stud gun has a welding range from 1/8” through 1-1/4” diameter studs.

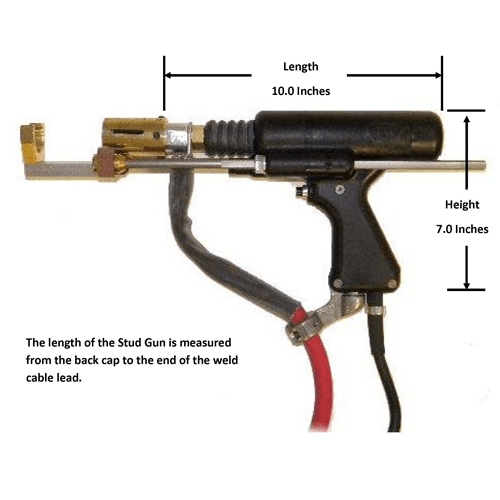

The TWE17000 is approximately 10.0″ long from the weld cable to the back cap, and approximately 7″ long from the top of the stud gun to the bottom of the handle. The overall weight of the gun is approximately 5.2 lbs., excluding 8.5 feet of 4/0 weld cable and 8 feet of control cable (this also excludes all connectors, legs, and foot piece). 90 day warranty.

TWE 17000 Spec Sheet

SKU: eq TWE17000 Category:


The TWE 17000 Heavy Duty Stud Gun is the perfect Arc welding gun for large projects and large diameter studs! Continue reading to discover this stud gun’s features!

Key Features

  • Weld Range: This stud gun is great for almost any job! Boasting a weld range of 1/8″-1 1/4″, the TWE 17000 is perfect for both small and large diameter studs!
  • Convenient Design: The ingenious design of this stud gun allows operators to grip it easily with or without a work glove. Additionally, this gun’s design keeps the gun’s cable secured and away from your hand!
  • Lightweight: The TWE 17000 is only 5.2lbs! This weight makes the stud gun extremely great for welding in tough to reach places!
  • Gun includes male phoenix type connector

About Arc Stud Welding

Arc Stud Welding is a process by which operators rapidly weld large diameter fasteners (>0.5″) to thick, rough metals. In Arc stud welding, an operator places a fastener (held in place by a chuck) and a ceramic ferrule against a parent metal by using an Arc stud gun. Once the operator pulls the trigger of the stud gun, a controlled electric arc melts the end of the fastener and the weld site, creating a strong fusion weld. The ceramic ferrule retains the heat and molten metal around the weld site. This further strengthens the fastener’s fusion to the parent metal. Additionally, the process of arc stud welding allows operators to weld dissimilar metals such as mild steel, stainless steel, and aluminum.

Not What You’re Looking For?

If you’d like to view our full selection of Arc and Capacitive Discharge stud welders, click here! And find our full selection of CD stud guns here!

Have Questions?

For more information on this product, email us or call our office at 800-252-1919 and we will get back to you shortly!
